#JANSEN

Folding and sliding doors

Jansen steel profiles enable the creation of large-area, torsion-resistant door systems with sleek, slender frames. The profile and seal ranges are designed to accommodate both manual and automatic door systems. Additionally, Jansen’s folding and door systems are CE-compliant, meeting the stringent requirements of product standard EN 13241-1.

System description

Materials / Surface Finish:

  • Uncoated steel, suitable for powder coating or stove-enamelingElement Types:
  • Manual and automatic folding doors
  • Automatic sliding-folding doors
  • Manual and automatic sliding doors
  • Customizable leaf subdivision
  • Folding doors can open inwards or outwards
  • Fully or partially sheet metal clad

performance characteristics

Equipment:

  • Automatic drive
  • Anti-finger-trap versions
  • Available with insulating glazing or infill panels
  • Equipped with integrated espagnolette boltSpecial Technical Features:
  • Construction depths: 50 mm, 60 mm, 80 mm
  • Sliding doors can be equipped with top or bottom tracks
  • Installation options: behind, between, or in front of the reveals

Product details

Test Certificates, Folding Doors:

  • CE marking in accordance with product standard EN 13241-1
    – Tightness against heavy rain: up to class 3
    – Air permeability: up to class 4
    – Resistance to wind load: up to class 5
  • Operating forces and user safety: in accordance with EN 12453Test Certificates, Sliding Doors:
  • CE marking in accordance with product standard EN 13241-1- Tightness against heavy rain: up to class 3
    – Air permeability: up to class 1
    – Resistance to wind load: up to class 4
  • Operating forces and user safety: in accordance with EN 12453

TECHNICAL DATA & DOWNLOADS

Download supporting documents & brochures here

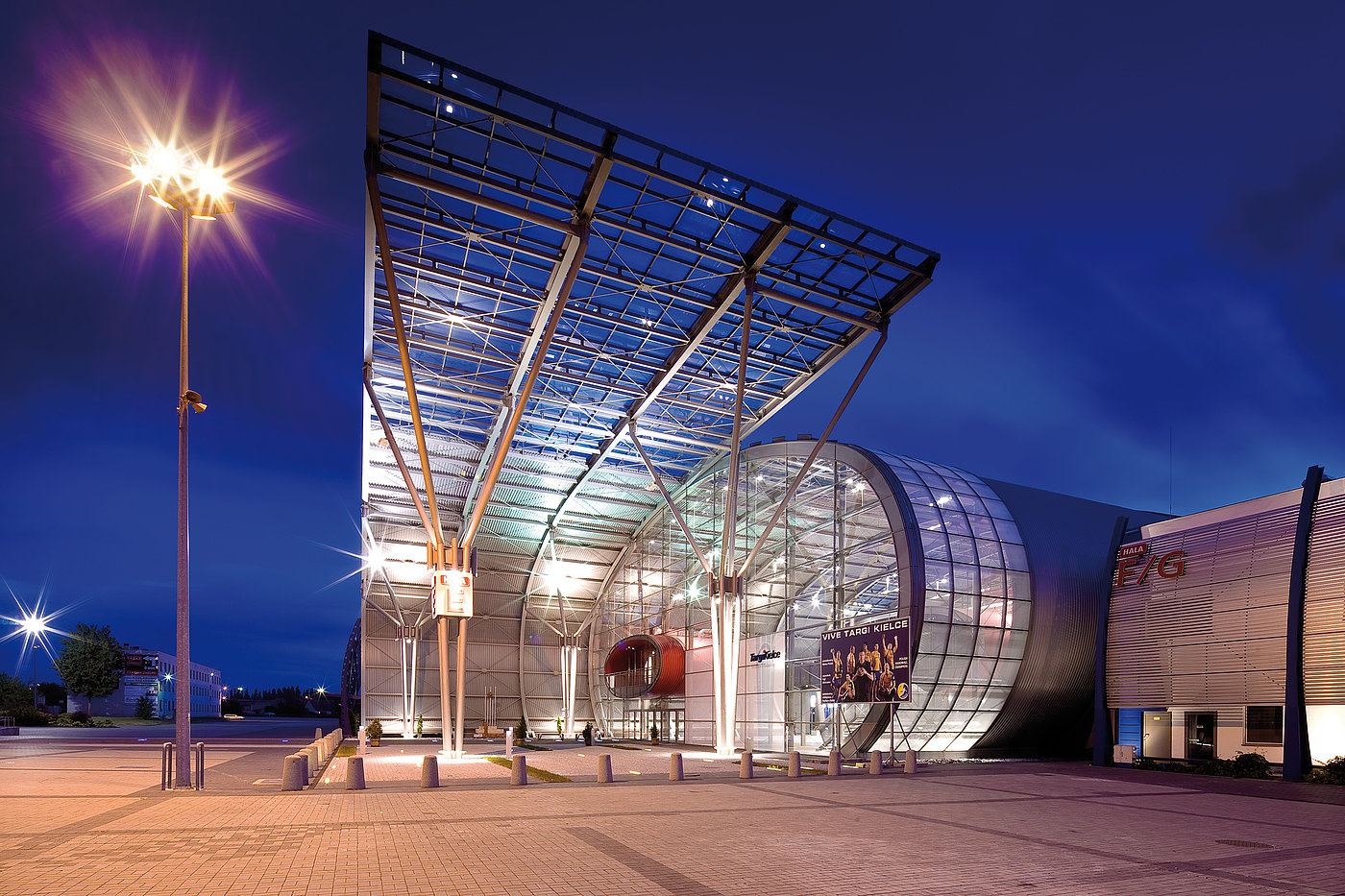

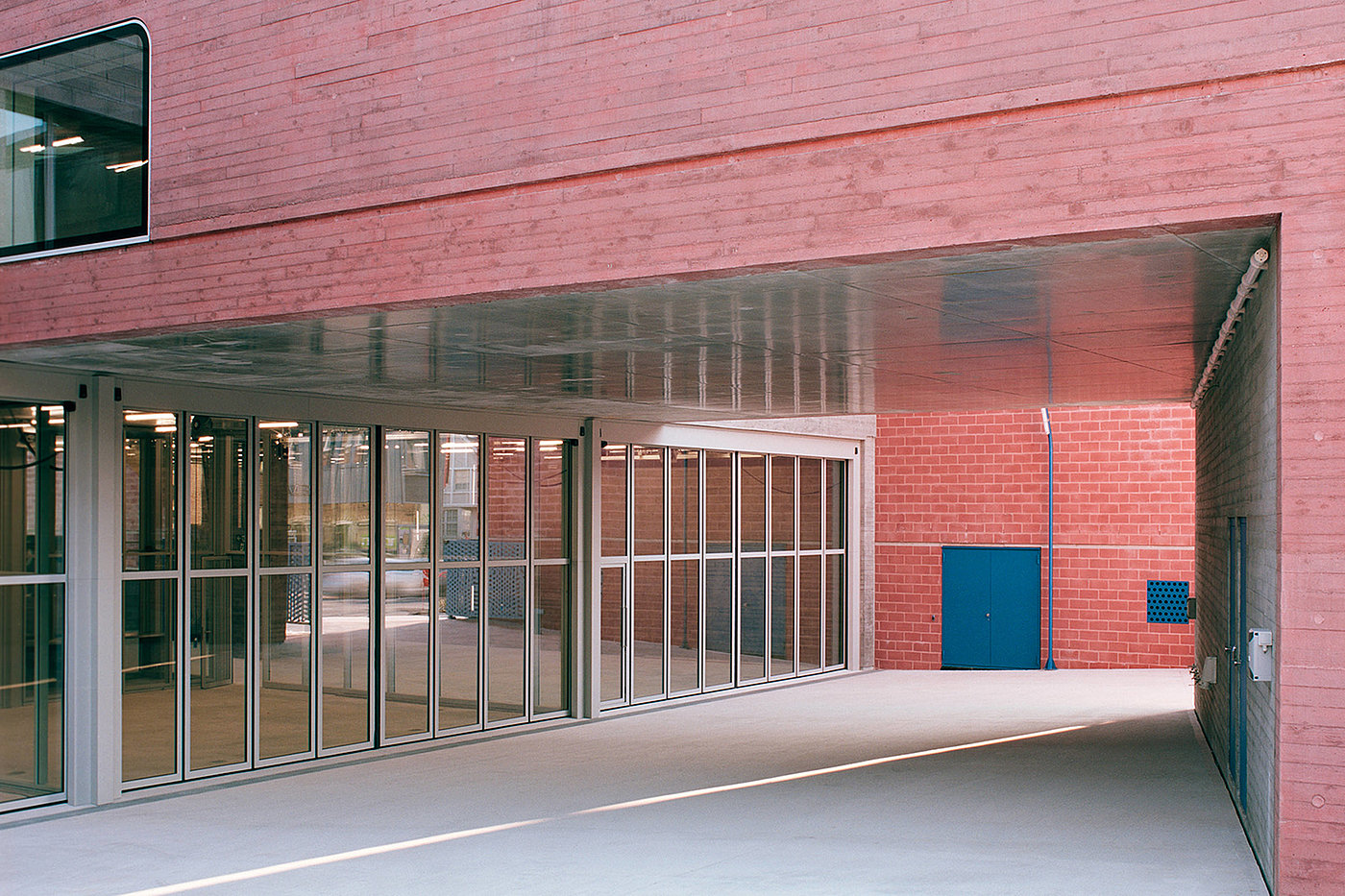

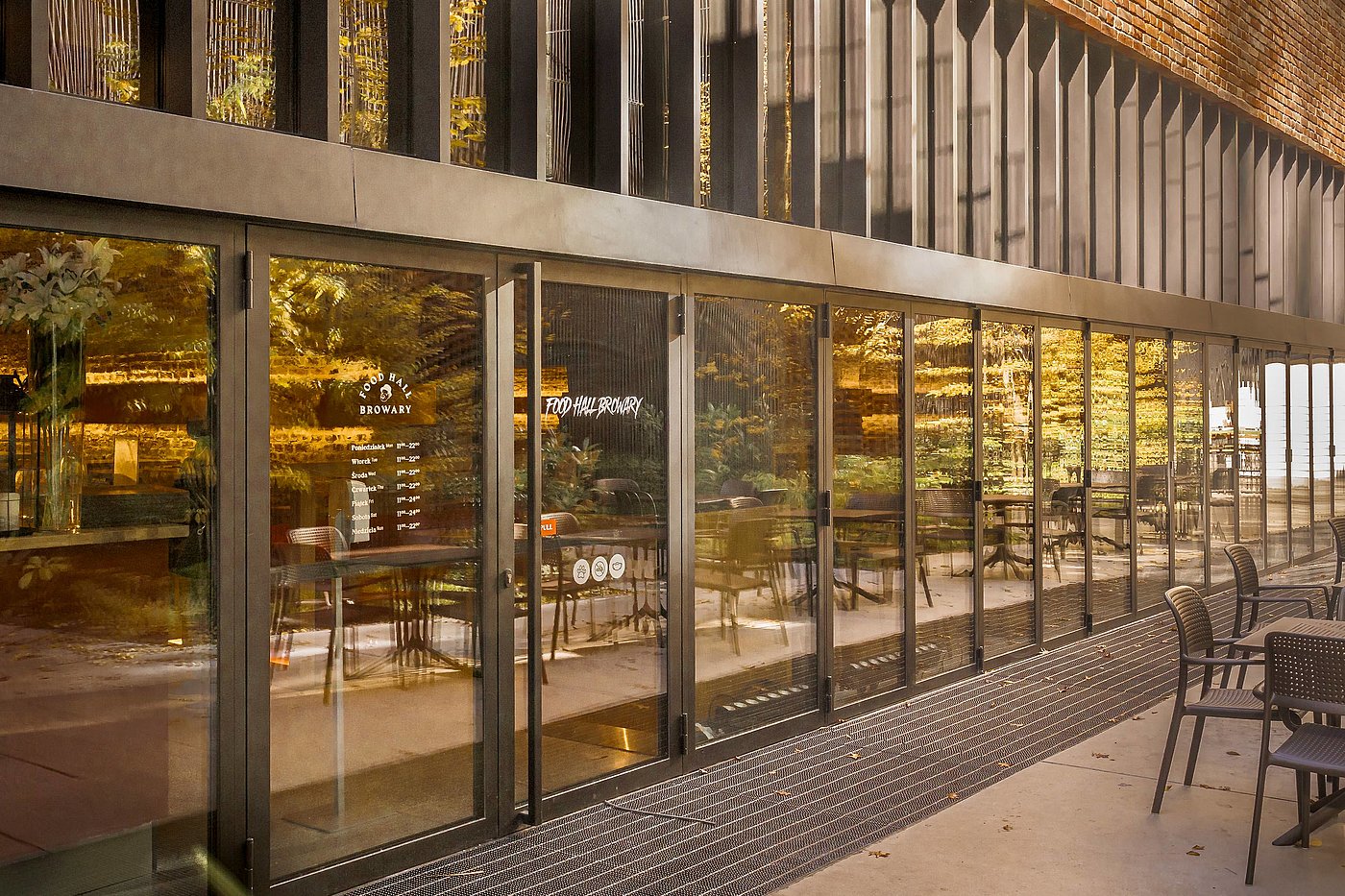

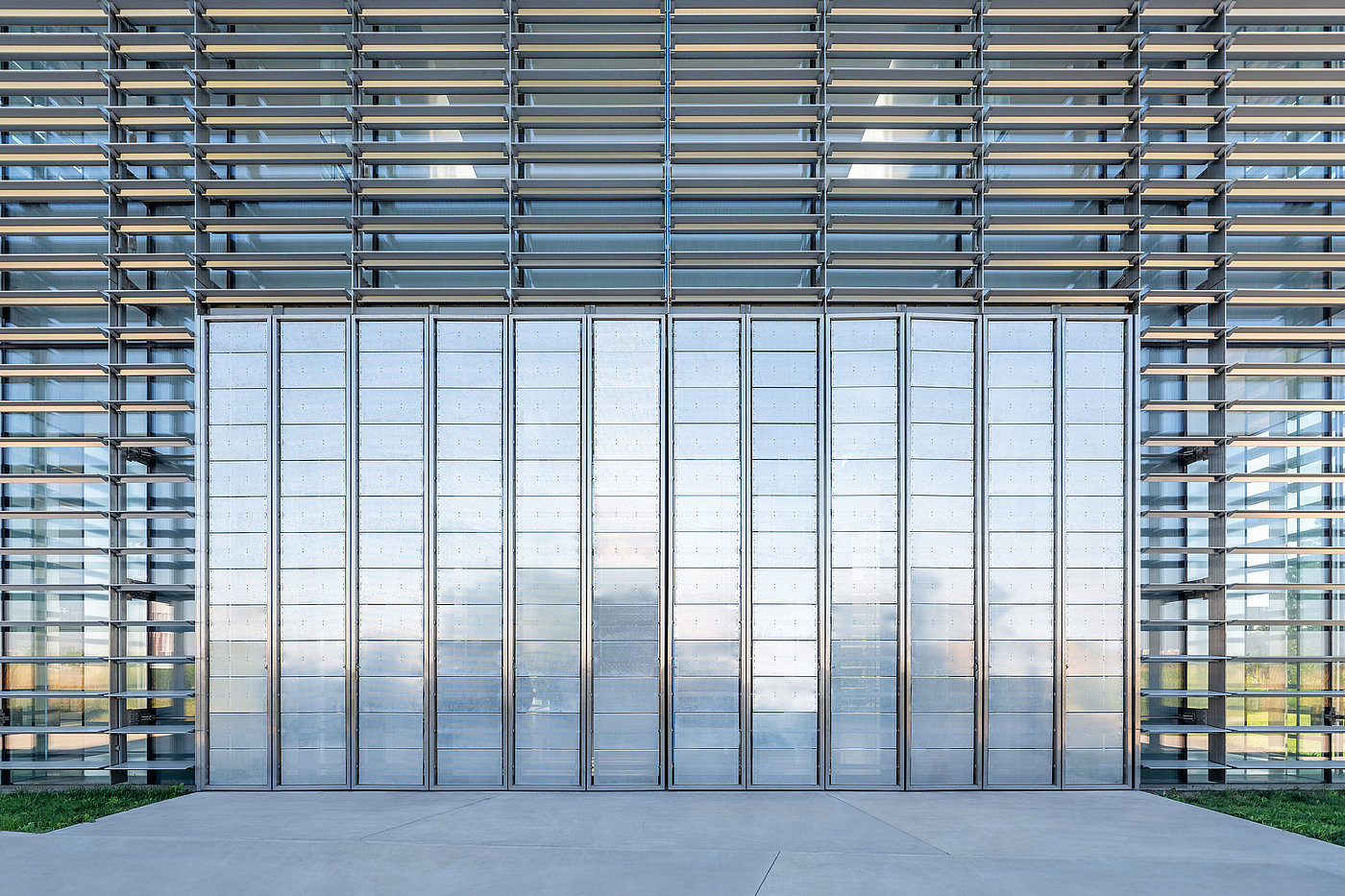

Completed projects Folding and sliding systems
Folding and sliding doors Manually and automatically operating doors in steel
Sales range Folding and sliding doors
Profile systems
