Smoke control doors and smoke control partitions – Jansen-Economy 50 RS

#JANSEN

Smoke control doors and smoke control partitions – Jansen-Economy 50 RS

Jansen Economy smoke control systems are ideal for creating large and heavy smoke control doors while maintaining exceptionally slender face widths, even for doors that exceed standard dimensions. The system supports a broad range of design and functional variations, all tested and approved in accordance with DIN 18095. Additionally, it allows for efficient fabrication of flush-fitting smoke control doors.

System description

Materials / Surface Finish:

Uncoated or strip-galvanised steel, suitable for powder coating or stove-enamelling
Stainless steel 1.4404, uncoated or polishedElement Types:
Single and double doors, with or without side panels and transom windows
Partition walls

performance characteristics

Equipment:

Steel and stainless steel hinges for welding or screw-fit
Integrated door closers
Multipoint locks (motorised options available)
Designer glazing beads
Emergency locks and panic push-barsSpecial Technical Features:
Central glazed panel
Dry glazing and glazing with putty
Options for combined fire protection and smoke protection, or solely fire protection (Jansen Economy 50 fire protection doors)
Also available without smoke protection (Jansen Economy 50 door)

Product details

Test Certificates:

Smoke control in accordance with DIN 18095
Smoke control tested in accordance with EN 1634-3
Durability (C5) tested in accordance with EN 1191
Emergency exit door in accordance with EN 1125 / EN 179

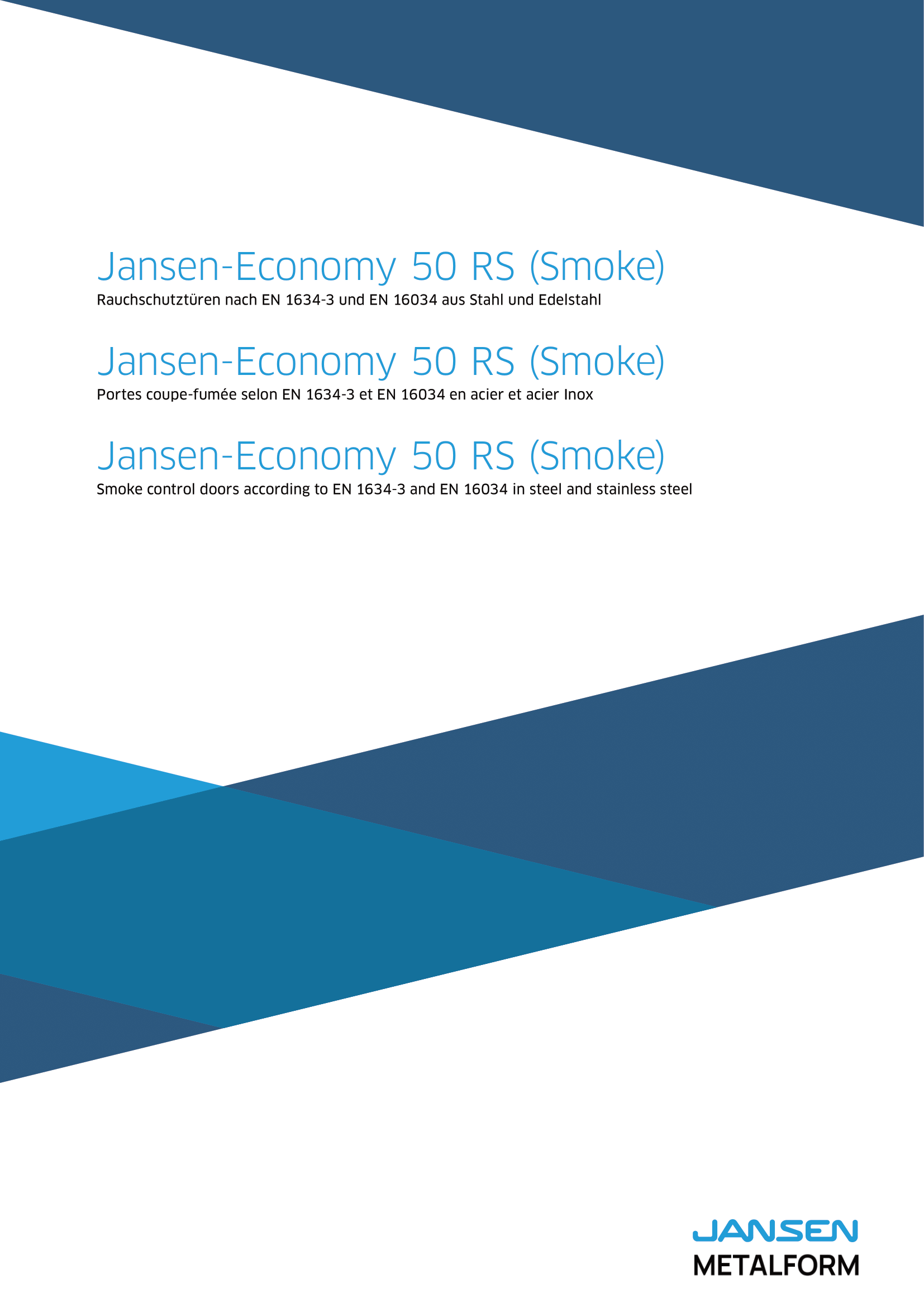

TECHNICAL DATA & DOWNLOADS

Download supporting documents & brochures here
