VISS Basic Facade

With VISS Basic, Jansen provides cost-effective and visually appealing system solutions for the construction of support-free facades. The system is designed based on the proven VISS framework, allowing for the creation of diverse facade designs, including those with very large spans. There are no limitations on the shape or material of the load-bearing structure.

System description

Support Structures:

  • VISS Basic: Utilizes commonly available hollow profiles, IPE sections, and similar materials.Construction Types:
  • Mullion-mullion-transom construction
  • Mullion-transom-mullion construction
  • Welded and/or push-fit construction
  • Segmental glazing, both concave and convex

performance characteristics

Equipment:

  • Combination of VISS Basic and VISS system profiles
  • Highly thermally insulated using HI insulating profile
  • Structural glazing
  • Easy integration of solar screening devices
  • Compatibility with windows and doorsSpecial Technical Features:
  • Face width starting from 50 mm
  • Construction depth adjustable to meet structural engineering requirements
  • Infill element thickness ranging from 6 to 70 mm

Product details

Test Certificates:

  • CE marking in accordance with EN 13830
    – Coefficient of thermal transmittance Uf > 0.95 W/m²K
    – Tightness against heavy rain: class RE1200
    – Air permeability: class AE
    – Resistance to wind load: class 2 kN/m²
    – Impact resistance: class E5/I5
  • TRAV
  • Burglar resistance: RC2/3/4

TECHNICAL DATA & DOWNLOADS

Download supporting documents & brochures here

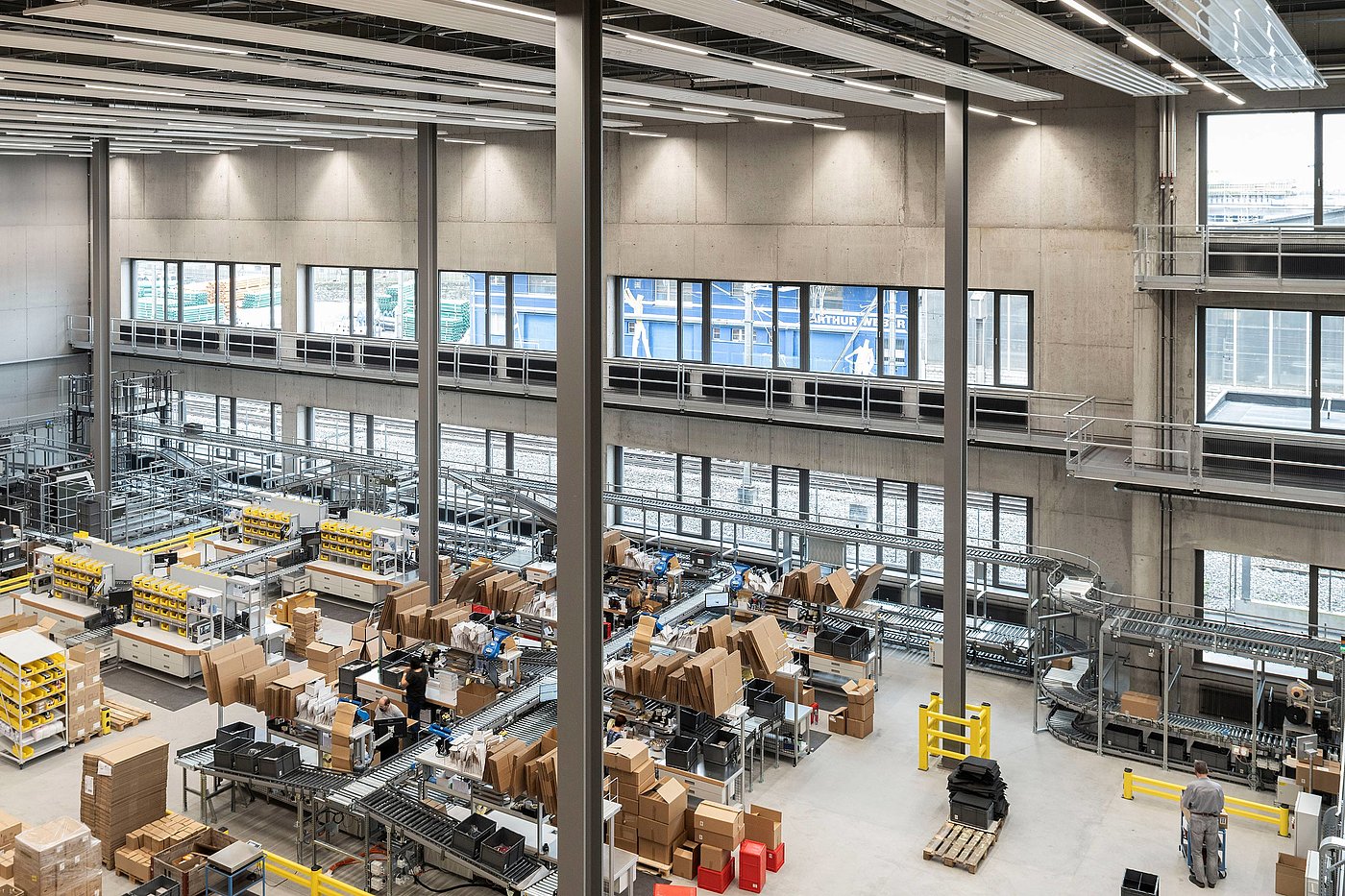

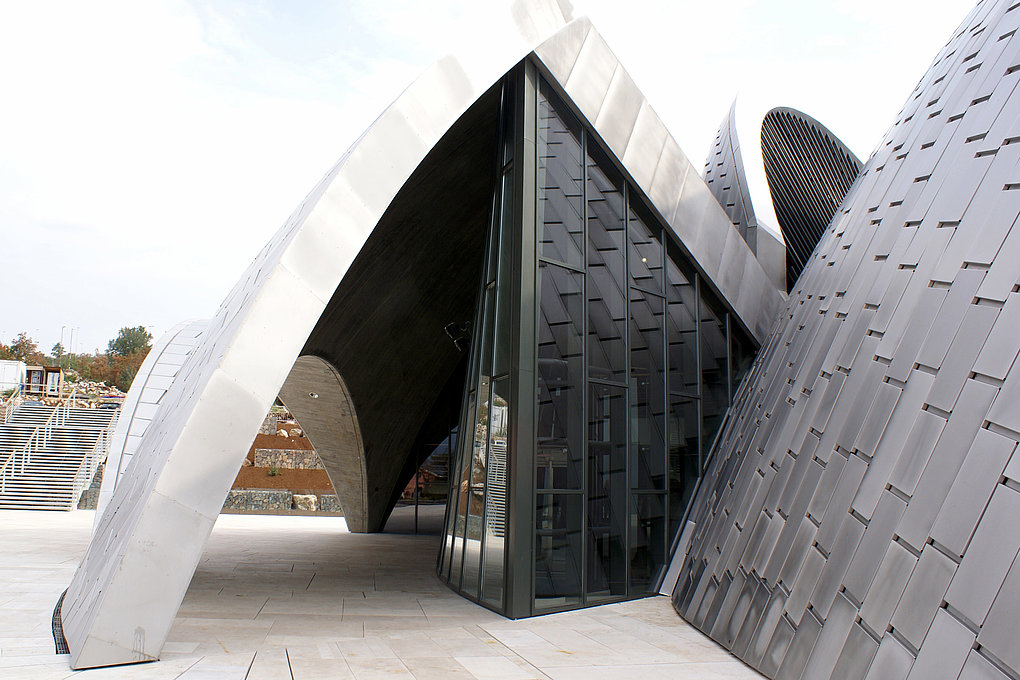

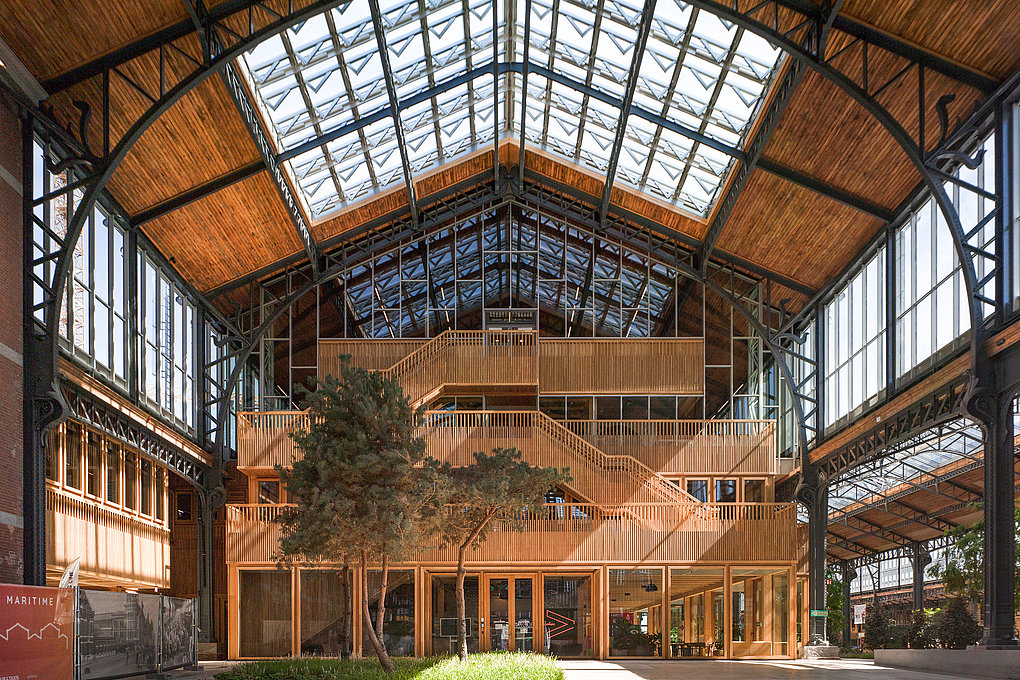

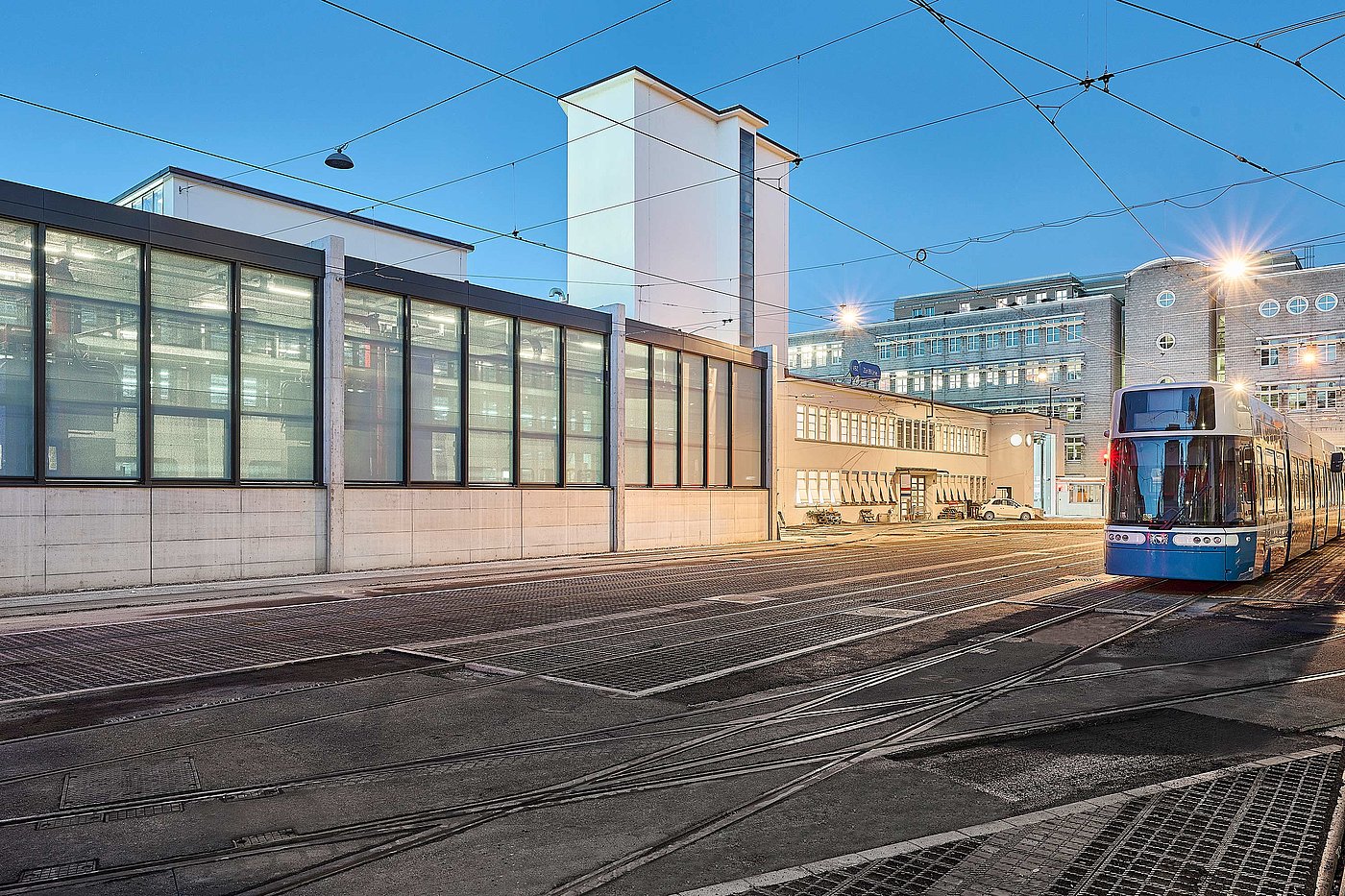

Completed projects Thermally insulated facade systems

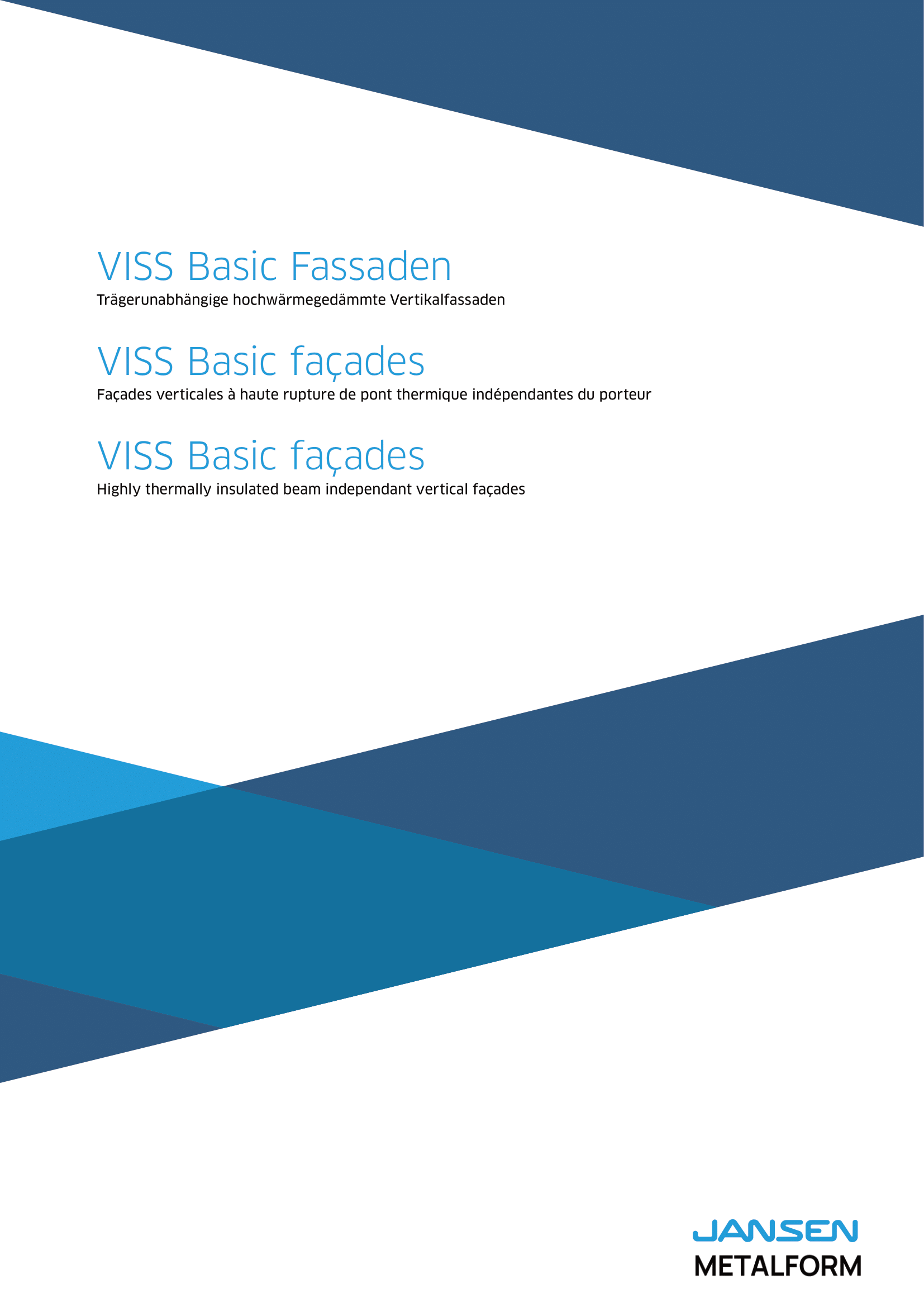

VISS Basic facades Highly thermally insulated beam independant vertical facades
