#JANSEN

VISS Facade

Using the VISS system, Jansen provides a highly thermally insulated facade construction that comes with a Passivhaus certificate, suitable for both new buildings and renovation projects. The modular system components are chosen based on structural needs, panel sizes, and infill element thicknesses to deliver the optimal solution for both structural integrity and cost efficiency.

System description

Materials / Surface:

  • Uncoated or strip-galvanised steel, suitable for powder coating or stove-enamelling
  • Cover profiles in aluminium and stainless steelSupport Structures:
  • VISS system profiles
  • Designer profiles (Linea, non-standard profiles)

performance characteristics

Construction Types:

  • Mullion-mullion-transom construction
  • Mullion-transom-mullion construction
  • Welded and/or push-fit construction
  • Segmental glazing, including concave and convex configurationsEquipment:
  • Highly insulated; Passivhaus certified
  • Structural glazing
  • Easy installation of solar screening devices
  • Compatible with windows and doorsSpecial Technical Features:



  • Face width options: 50 mm and 60 mm
  • Thickness of infill elements: 6 to 70 mm
  • Construction depths: 50 mm to 280 mm

Product details

Test Certificates:

  • CE marking in accordance with product standard EN 13830
    – Coefficient of thermal transmittance Uf > 0.65 W/m²K
    – Airborne sound insulation Rw 47 dB
    – Tightness against heavy rain class RE1200
    – Air permeability class AE
    – Resistance to wind load class 2 kN/m²
    – Impact resistance class E5/I5
    – Burglar resistance RC 2 to 3
    – Bullet resistance FB4/NS
  • Clamp connection AbZ Z-14.4-459
  • Mullion-transom connection AbZ Z-14.4-467
  • TRAV
  • Avis Technique France
  • CWCT test

TECHNICAL DATA & DOWNLOADS

Download supporting documents & brochures here
VISS facade Sales range
VISS supporting structure Sales range
VISS facades Highly thermally insulated vertical facades

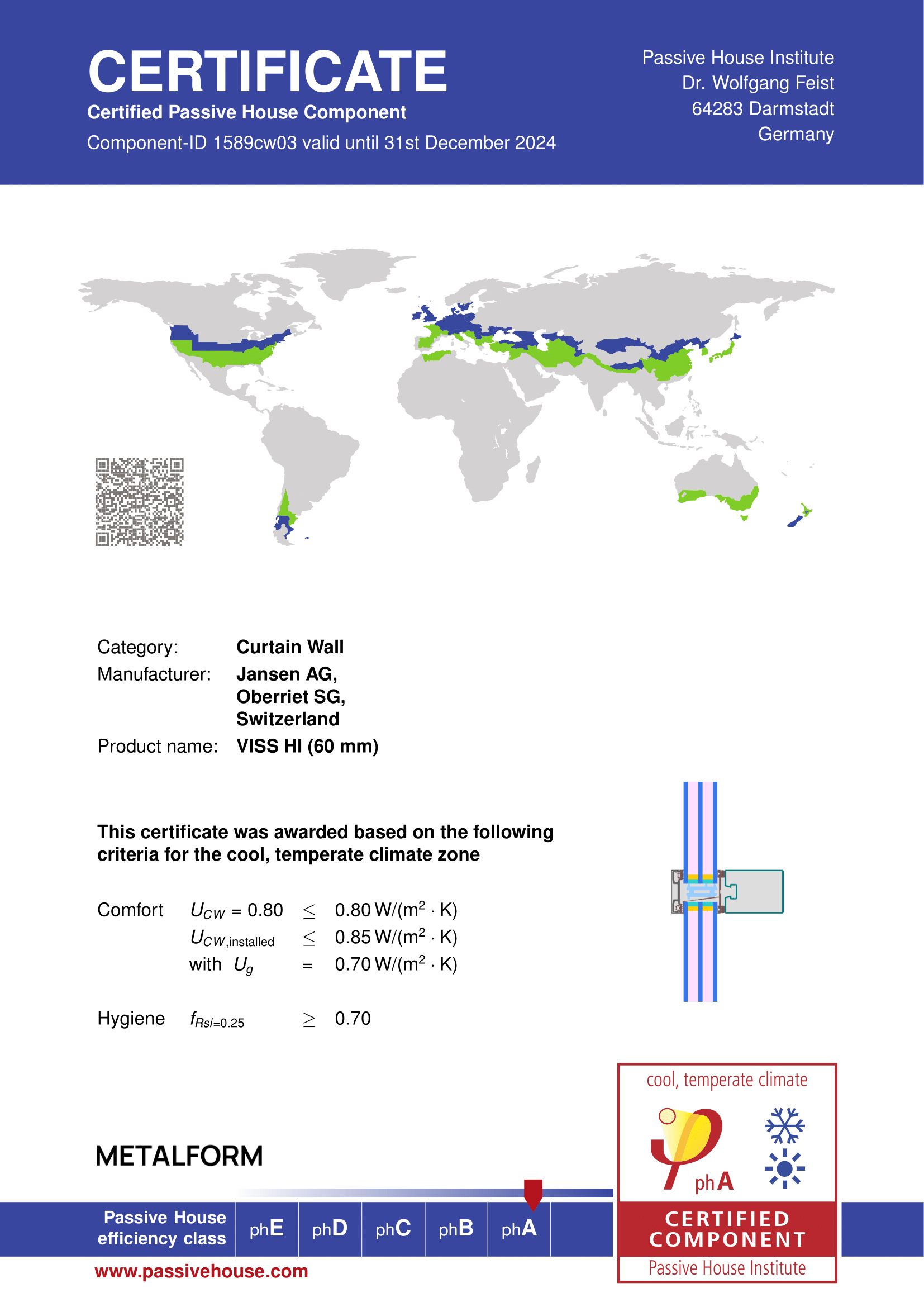

CERTIFICATE Certified Passive House Component VISS HI (60 mm)

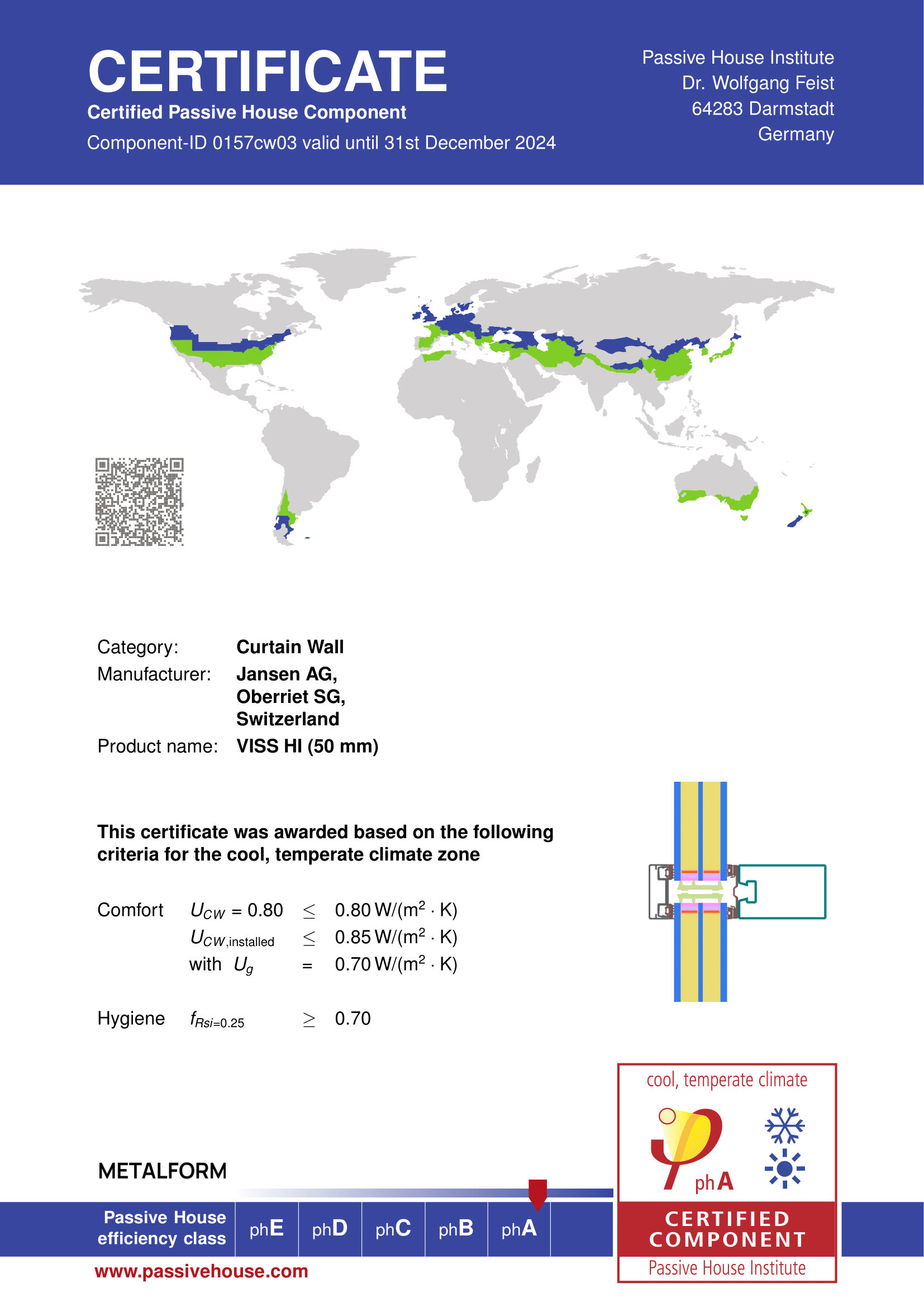

CERTIFICATE Certified Passive House Component VISS HI (50 mm)
